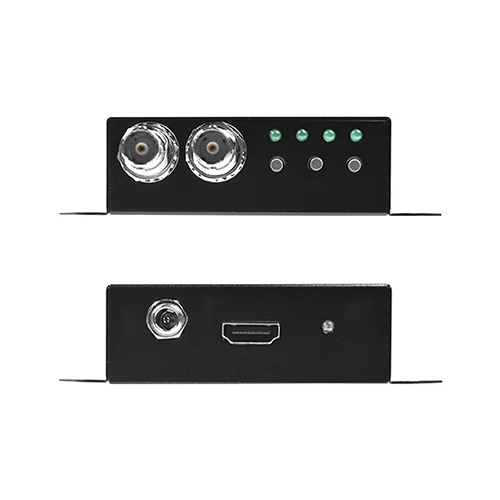

HDMI to SDI-S – Up/Down Converter

If you need further assistance, have questions or would like an offer for this product, please don't hesitate to use the contact form below.

Company/Organisation

Tax ID

Your Name

Your Email

Street

ZIP

Town

Country

SKU

Minimum Order Quantity

Market Application

Usage

Your Message

By clicking Send, you agree to our Terms and Data Use Policy.

SKU: HDMI2SDI-S Categories: , Tags: , ,

Description

Model HDMI to SDI-S
Description Converts from HDMI to SDI
Provides two duplicated SDI outputs
Feature Auto source format detection (3G/HD/SD)
Built-in hardware scaling engine with anti-aliasing
Splitter function
Auto audio re-sample to 48KHz 2 channels, Stereo
1 Mini-USB port used for:
Brightness, contrast, hue, saturation, configuration
Firmware upgrade
Input Interface HDMI (v1.4)V1
Output Interface SDIV2
SDI Format 3G-SDI
HD-SDI
SD-SDI
Supported Video Format 3G format
1080p50/60

HD format
1080p24/25/30
1080i50/60
720p50/60

SD format
625i (PAL)
525i (NTSC)

Supported Audio Format Up to 8 channels, 24bit, 48KHz
Plug & Play
DC In 7.5V ~ 15V
