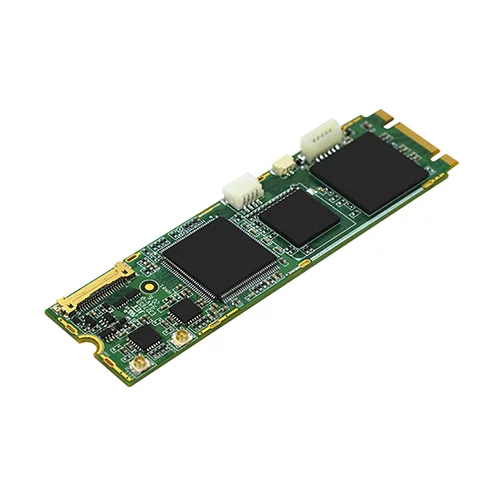

2 Channel 1080p60 All-In-One M.2 Capture Card - SC400N2 M2 AIO

If you need further assistance, have questions or would like an offer for this product, please don't hesitate to use the contact form below.

By clicking Send, you agree to our Terms and Data Use Policy.

SKU: SC400N2_M2_AIO Categories: , Tags: , ,

Description

Model SC400N2 M2 AIO
Max. FPS 1920×1080p@60/50fps in → 1920×1080p@60/50fps out
Recording Mode Software Compression, Real-Time Mode

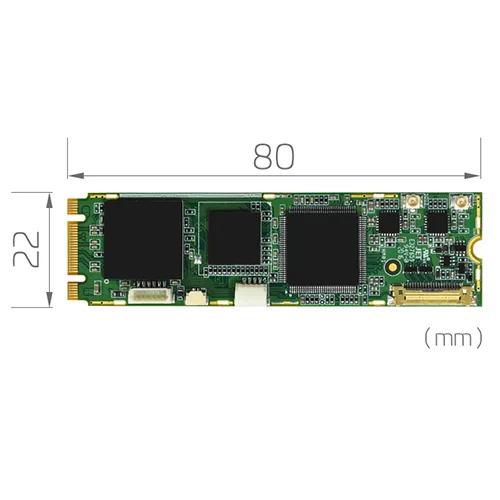

Dimension 22×80 ( mm ) M.2 Type B/M
Interface M.2 ( PCIe×1 )

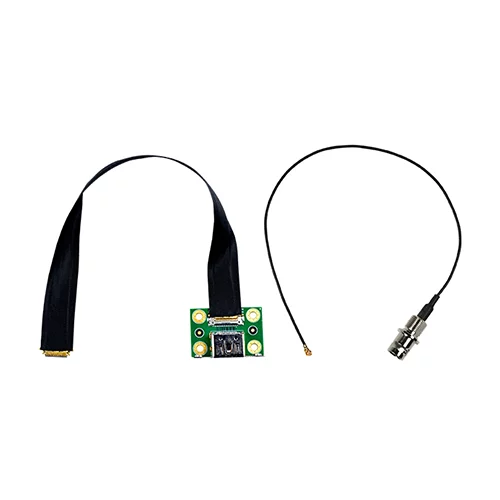

Video Input 1×HDMI, 1×SDI or 2×SDI
Display Video Format YV12, NV12, YUY2, RGB24, RGB32, P010
Video RAW Data Resolution
1920×1080p@60/50fps
1920×1080p@30/25/24fps
1920×1080i@60/50fps
1280×720p@60/50fps
1280×1024p@60fps
1280×960p@60fps
1024×768p@60fps
800×600p@60fps
640×480p@60fps
720×480p@60fps
720×576p@50fps
720×480i@60fps
720×576i@50fps
3G-SDI
1920×1080p@60/50fps

HD-SDI
1920×1080p@30/25/24fps
1920×1080i@60/50fps
1280×720p@60/50fps

SD-SDI
720×480i@60fps
720×576i@50fps

Recording Video Format H.264 ( Software Compression )
Recording Video Resolution
1920×1080p@60/50fps
1920×1080p@30/25/24fps
1920×1080i@60/50fps
1280×720p@60/50fps
1280×1024p@60fps
1280×960p@60fps
1024×768p@60fps
800×600p@60fps
640×480p@60fps
720×480p@60fps
720×576p@50fps
720×480i@60fps
720×576i@50fps
3G-SDI
1920×1080p@60/50fps

HD-SDI
1920×1080p@30/25/24fps
1920×1080i@60/50fps
1280×720p@60/50fps

SD-SDI
720×480i@60fps
720×576i@50fps

Audio Input HDMI Embedded Audio + SDI Embedded Audio or
2×SDI Embedded Audio
Audio Format Stereo / 16-bit / 32000 ~ 48000Hz
Multiple Cards
SDK Support API : DirectShow, V4L2, FFmpeg, Gstreamer
Support Language : C++, C#, .NET, Visual Basic, Qt, Delphi
SDI Metadata Support VANC Capture and Palyback Being Able to Get Timecode, Close Caption..etc.
System Requirement
OS Support Windows 7 / Windows 8 / Windows 8.1 / Windows 10
Linux 2.6.14 or Higher ( 32-bit and 64-bit )

Additional information

Number of Input Channels

2 Channels

Color Precision

NV12, P010, RGB24, RGB32, YUY2, YV12

Connection Interface

M.2 Type B/M

Resolution

1080p60/50

Recording Mode

Real Time Mode, Software Compression

Video Input

HDMI, SDI
