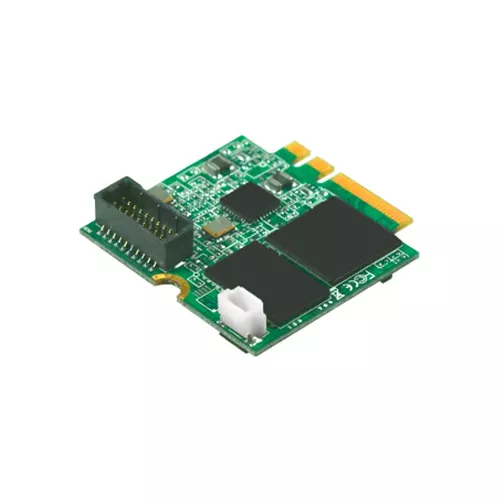

1 Channel 1080p30 HDMI m.2 Capture Card With Hardware Compression - SC5A0N1 M2 HDMI

If you need further assistance, have questions or would like an offer for this product, please don't hesitate to use the contact form below.

Company/Organisation

Tax ID

Your Name

Your Email

Street

ZIP

Town

Country

SKU

Minimum Order Quantity

Market Application

Usage

Your Message

By clicking Send, you agree to our Terms and Data Use Policy.

SKU: SC5A0N1_M2_HDMI Categories: , Tags: ,

Description

Model SC5A0N1 M2 HDMI
Max. FPS 1920×1080p@60/50fps in → 1920×1080p@30/25fps out
Recording Mode Hardware Compression, Real-Time Mode
Dimension 30×30 ( mm ) M.2 Type A/E
Interface M.2 ( PCIe×1 )
Video Input 1×HDMI
Display Video Format YV12, NV12, YUY2, RGB24, RGB32
Video RAW Data Resolution 1920×1080p@30/25/24fps
1920×1080i@60/50fps
1280×720p@60/50fps
1280×1024p@60fps
1280×960p@60fps
1024×768p@60fps
800×600p@60fps
640×480p@60fps
720×480p@60fps
720×576p@50fps
720×480i@60fps
720×576i@50fps
Recording Video Format H.264 ( Software Compression )
Recording Video Resolution 1920×1080p@30/25/24fps
1920×1080i@60/50fps
1280×720p@60/50fps
1280×1024p@60fps
1280×960p@60fps
1024×768p@60fps
800×600p@60fps
640×480p@60fps
720×480p@60fps
720×576p@50fps
720×480i@60fps
720×576i@50fps
Audio Input 1×HDMI Embedded Audio
Audio L/R ( Through Wafer Connector )
Audio Format Stereo / 16-bit / 32000 ~ 48000Hz
Multiple Cards
SDK Support API: DirectShow, V4L2, FFmpeg, Gstreamer
Support Language: C++, C#, .NET, Visual Basic, Qt, Delphi
System Requirement
OS Support Windows 7 / Windows 8 / Windows 8.1 / Windows 10
Linux 2.6.14 or Higher ( 32-bit and 64-bit )

Additional information

Number of Input Channels

1 Channel

Color Precision

NV12, RGB24, RGB32, YUY2, YV12

Connection Interface

M.2 Type A/E

Resolution

1080p30/25

Recording Mode

Hardware Compression, Real Time Mode

Video Input

HDMI
