Description
| Model |
SC5C0N2-L SDI
|
|---|---|
| Max. FPS | 1920×1080p@60/50fps in → 1920×1080p@60/50fps out |
| Recording Mode | Hardware Compression, Real-Time Mode |
| Interface | PCIe×1 ( Gen2 ) |

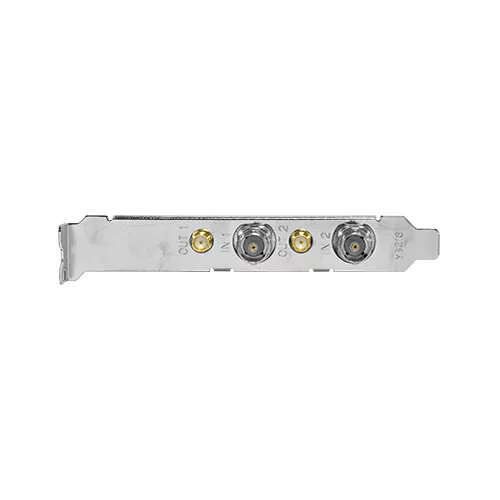

| Video Input | 2×SDI |
| Video Output | 2×SDI ( Loop-Through ) |
| Display Video Format | YV12, NV12, YUY2, RGB24, RGB32 |
| Video RAW Data Resolution | 3G-SDI 1920×1080p@60/50fps HD-SDI SD-SDI |
| Recording Video Format | H.264 ( Hardware Compression ) |
| Recording Video Resolution | 3G-SDI 1920×1080p@60/50fps HD-SDI SD-SDI |
| Audio Input | 2×SDI Embedded Audio 1×3.5mm Audio |
| Audio Output | 2×SDI Embedded Audio 1×3.5mm Audio ( Loop-Through ) |
| Audio Format | Stereo / 16-bit / 32000 ~ 48000Hz |
| WatchDog | |
| Multiple Cards | ∞ |
| SDK | Support API: DirectShow, V4L2, FFmpeg, Gstreamer Support Language: C++, C#, .NET, Visual Basic, Qt, Delphi |
| System Requirement | |
| OS Support | Windows 7 / Windows 8 / Windows 8.1 / Windows 10 Linux 2.6.14 or Higher ( 32-bit and 64-bit ) |
