1 CHANNEL 1080P60 HDMI or SDI H.26X OVER IP STREAMING SOLUTION - SC6C0 Mini

If you need further assistance, have questions or would like an offer for this product, please don't hesitate to use the contact form below.

By clicking Send, you agree to our Terms and Data Use Policy.

SKU: SC6C0_MINI Categories: , Tags: , ,

Description

Model SC6C0 MiniWIFI
Max. FPS 1920×1080p@60 / 50fps
Recording Mode Hardware Compression, Real-Time Mode

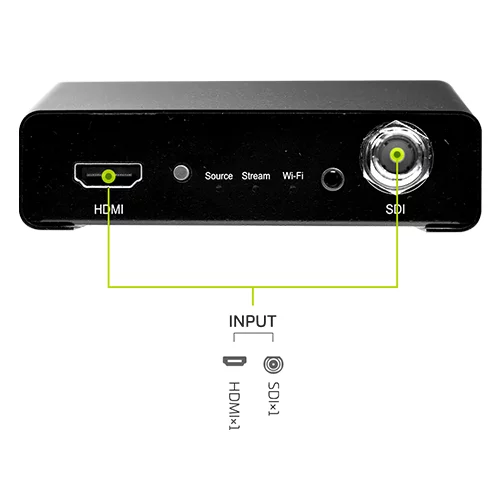

Input Interfaces Video
1×HDMI
1×SDI

Audio
1×3.5mm stereo analog audio
SDI/HDMI embedded audio

Video Feature H.264/AVC , Baseline/Main/High Profile
Configurable bit rate up to 10Mbps

Supported Resolutions:
Input
1920×1080 ( P60 / P50 / P30 / P25 / P24 / i60 / i50 )
1280×720 ( P60 / P50 )
1280×1024( P60 )
1280×960 ( P60 )
1024×768 ( P60 )
800×600 ( P60 )
720×480 ( P60 / i60 )
640×480 ( P60 )
720×576 ( P50 / i50 )

Output
Resize Range from 128×128 to 1920×1080 ( P60 )
*Output Include Down Scaling.

Audio Feature AAC-LC
Configurable bit rate range from 32Kbps to 384Kbps
Sample rate: 48KHz, 16bit
Network Feature 1×RJ45 for 10/100Mbps Ethernet
DHCP client

Wifi
802.11b/g/n
Support 150Mbps PHY rate

Support Streaming protocol TS over TCP/UDP (unicast & multicast)
RTSP over HTTP/TCP/UDP (RTSP Elementary Stream)
RTMP(Publish)
HLS
Misc. Features Dynamic Parameter setting
Web UI for system configuration
Firmware upgradable
LED indicator
Status With Power Recycle
System Requirement
Power Supply DC 12V (With DC Adapter)

Additional information

Resolution

1080p60/50

Number of Input Channels

1 Channel

Recording Mode

Hardware Compression, Real Time Mode

Streaming Protocol

RTSP / RTMP / TS / HLS

Video Input

HDMI, SDI

Color

Black
