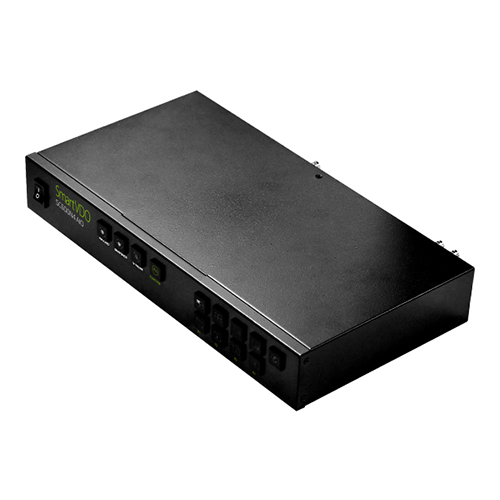

4 CHANNEL 1080P60 ALL-IN-ONE AV OVER IP STREAMING SOLUTION - SC6D0N4 AIO (HDMI+SDI)

If you need further assistance, have questions or would like an offer for this product, please don't hesitate to use the contact form below.

Company/Organisation

Tax ID

Your Name

Your Email

Street

ZIP

Town

Country

SKU

Minimum Order Quantity

Market Application

Usage

Your Message

By clicking Send, you agree to our Terms and Data Use Policy.

SKU: SC6D0N4_HDMI-SDI Categories: , Tags: , , , ,

Description

Model SC6D0N4 AIO HID+
Max. FPS 1920×1080p@300fps
Recording Mode Hardware Compression
4G Support LTE
LTE FDD : Max 150Mbps ( DL ) / Max 50Mbps ( UL )
LTE TDD : Max 130Mbps ( DL ) / Max 35Mbps ( UL )
Input Interface Video
4×HDMI / SDI

Audio
4×3.5mm Line in
4×XLR Balanced Audio ( +20dBu ) for Option

Output Interface Video
1×HDMI ( 1080P Multiview )
1×HDMI ( 1080P Multiview ) for Option
1×HDMI ( 1080P PGM )
1×SDI ( 1080P PGM )

Audio
1×3.5mm Stereo Analog Audio ( 3.3Vp-p )

Video Feature H.265 / H.264 / AVC, Baseline / Main / High Profile
Configurable Bit Rate Up to 64Mbps

Supported Input / Output Resolutions:
1920×1080p@60/50fps
1920×1080p@30/25/24fps
1920×1080i@60/50fps
1280×720p@60/50fps
1280×1024p@60fps
1280×960p@60fps
1024×768p@60fps
800×600p@60fps
640×480p@60fps
720×480p@60fps
720×576p@50fps
720×480i@60fps
720×576i@50fps

3G-SDI
1920×1080p@60/50fps

HD-SDI
1920×1080p@30/25/24fps
1920×1080i@60/50fps
1280×720p@60/50fps

SD-SDI
720×480i@60fps
720×576i@50fps

Audio Feature AAC-LC
Configurable Bit Rate Range from 32Kbps to 384Kbps
Sample Rate: 48KHz, 16bit Stereo
Network Feature 2×RJ45 for 10/100/1000Mbps Ethernet
DHCP Client
Wifi: 802.11b / g / n
Support Streaming Protocol NDI Support
RTSP over UDP/TCP/Multicast/HTTP
RTMP public ( web portal )
**TS over IP
**HLS
** optional by customer request
Misc. Features 512MB Flash
2GB Memory
Web UI for system configuration
Firmware upgradable
LED indicator
Status with Power Recycle
2×USB3.0
1×RS232 + 1×RS485 / RS232
1×M.2 Connector ( For SSD )
1×MiniCard Connector ( For 4G/LTE Module )
1×SD Card Slot ( SDIO Supported )
1×SATA Connector
1×I2C Data Line
Record Format MP4 / TS / AVI / MOV
System Requirement
Power Supply DC input: 12V / 2A

Additional information

Resolution

1080p60/50

Number of Input Channels

4 Channels

Recording Mode

Hardware Compression

Streaming Protocol

NDI, RTSP / RTMP / TS / HLS

Video Input

HDMI, SDI

Color

Black

Video Output

HDMI, RJ45 – Copper, SDI
