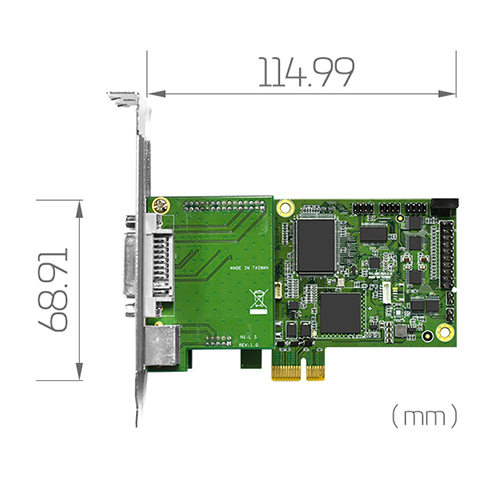

1 Channel 1080p60 HDV Low Profile PCIe Capture Card - SC700N1-L HDV

If you need further assistance, have questions or would like an offer for this product, please don't hesitate to use the contact form below.

Company/Organisation

Tax ID

Your Name

Your Email

Street

ZIP

Town

Country

SKU

Minimum Order Quantity

Market Application

Usage

Your Message

By clicking Send, you agree to our Terms and Data Use Policy.

SKU: SC700N1-L_HDV Categories: , Tags: , ,

Description

Model SC700N1-L HDV
Max. FPS 1920×1080p@60/50fps in → 1920×1080p@60/50fps out
Recording Mode Software Compression, Real-Time Mode
Interface PCIe×1 ( Gen2 )
Video Input 1×DVI-I, 1×YPbPr, 1×S-Video, 1×CVBS
( RGB/YUV 420/422/444 8/10bits )
Video Output 1×DVI-I, 1×YPbPr, 1×S-Video, 1×CVBS
( Loop-Through; Optional )
Display Video Format YV12, NV12, YUY2, RGB24, RGB32, V410, Y410
Video RAW Data Resolution 1920×1080p@60/50fps
1920×1080p@30/25/24fps
1920×1080i@60/50fps
1280×720p@60/50fps
1280×1024p@60fps
1280×960p@60fps
1024×768p@60fps
800×600p@60fps
640×480p@60fps
720×480p@60fps
720×576p@50fps
720×480i@60fps
720×576i@50fps
Recording Video Format H.264 ( Software Compression )
Recording Video Resolution 1920×1080p@60/50fps
1920×1080p@30/25/24fps
1920×1080i@60/50fps
1280×720p@60/50fps
1280×1024p@60fps
1280×960p@60fps
1024×768p@60fps
800×600p@60fps
640×480p@60fps
720×480p@60fps
720×576p@50fps
720×480i@60fps
720×576i@50fps
Audio Input A Pair of RCA Audio Connector ( Audio L/R Through YPbPr Cable )
PCB Audio Pin Input: Line-in, Microphone, XLR
Audio Output A Pair of RCA Audio Connector ( Audio L/R Through YPbPr Cable )
( Loop-Through; Optional )
Audio Format Stereo / 16-bit / 32000 ~ 48000Hz
Multiple Cards
SDK Support API: DirectShow, V4L2, FFmpeg, Gstreamer
Support Language: C++, C#, .NET, Visual Basic, Qt, Delphi
System Requirement
OS Support Windows 7 / Windows 8 / Windows 8.1 / Windows 10
Linux 2.6.14 or Higher ( 32-bit and 64-bit )

Additional information

Resolution

1080p60/50

Number of Input Channels

1 Channel

Color Precision

NV12, RGB24, RGB32, V410, Y410, YUY2, YV12

Connection Interface

PCIe

Recording Mode

Real Time Mode, Software Compression

Video Input

All In One / Multi / HDV

Video Output

All In One / Multi / HDV (Loop-Through)

PCIe Form Factor

PCIe Low Profile
