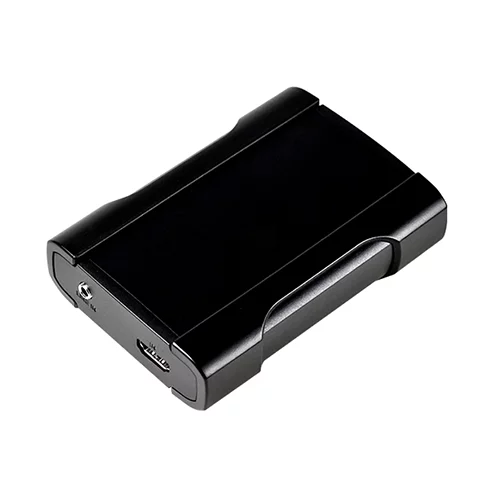

1 Channel 4K60 HDMI2.0 Thunderbolt3.0 External Capture Card - TB710 HDMI2.0

If you need further assistance, have questions or would like an offer for this product, please don't hesitate to use the contact form below.

Description

Model TB710 HDMI2.0
Max. FPS 4096×2160p@60/50fps in → 4096×2160p@60/50fps out
Recording Mode Software Compression, Real-Time Mode
Interface Thunderbolt 3.0
Video Input 1×HDMI 2.0
( HDR Support HDR10/HLG, RGB/YUV 420/422/444 8/10bits, 3D Support HDMI1.4B 3D Specification )
Video Output 1×HDMI 2.0
( Loop-Through, HDR Support HDR10/HLG, RGB/YUV 420/422/444 8/10bits, 3D Support HDMI1.4B 3D Specification )
Display Video Format YV12, NV12, YUY2, RGB24, RGB32, V410, Y410
Video RAW Data Resolution HDMI 2.0
4096×2160@60/50/30/25/24fps
3840×2160@60/50/30/25/24fps
1920×1080p@60/50fps
1920×1080p@30/25/24fps
1920×1080i@60/50fps
1280×720p@60/50fps
1280×1024p@60fps
1280×960p@60fps
1024×768p@60fps
800×600p@60fps
640×480p@60fps
720×480p@60fps
720×576p@50fps
720×480i@60fps
720×576i@50fps
Recording Video Format H.264 ( Software Compression )
Recording Video Resolution HDMI 2.0
4096×2160@60/50/30/25/24fps
3840×2160@60/50/30/25/24fps
1920×1080p@60/50fps
1920×1080p@30/25/24fps
1920×1080i@60/50fps
1280×720p@60/50fps
1280×1024p@60fps
1280×960p@60fps
1024×768p@60fps
800×600p@60fps
640×480p@60fps
720×480p@60fps
720×576p@50fps
720×480i@60fps
720×576i@50fps
Audio Input 1×HDMI Embedded Audio
1×3.5mm Audio Phone Jack
Audio Output 1×HDMI Embedded Audio
Audio Format Stereo / 16-bit / 32000 ~ 48000Hz
SDK Support API: DirectShow, V4L2, FFmpeg, Gstreamer
Support Language: C++, C#, .NET, Visual Basic, Qt, Delphi
System Requirement
OS Support Windows 7 / Windows 8 / Windows 8.1 / Windows 10
Linux 2.6.14 or Higher ( 32-bit and 64-bit )

Additional information

Resolution

4K 60p/50p

Number of Input Channels

1 Channel

Color Precision

NV12, RGB24, RGB32, V410, Y410, YUY2, YV12

Connection Interface

Thunderbolt3.0

Recording Mode

Real Time Mode, Software Compression

Video Input

HDMI

Color

Black
