Description
| Model | Multi to SDVoE Pro 4K-C | |
|---|---|---|
| Description | HDMI 2.0, DisplayPort 1.2, DVI-DL, and 12G-SDI to SDVoE, 12G-SDI and HDMI 2.0 Converter | |
| Feature | DisplayPort Multi-Stream Transport ( MST ) / Single Stream Transport ( SST ) Support DVI Dual Link ( DVI-DL ) Support Multi-Standard Support ( 12G / 6G / 3G / HD / SD-SDI ) SDI support Single Link / Dual Link / Quad Link Quad-Link 2 Sample Interleave ( 2SI ) Input Supported 1 USB interface for PC Connected 2 RJ45 Connectors for Video and Control Usage |
|

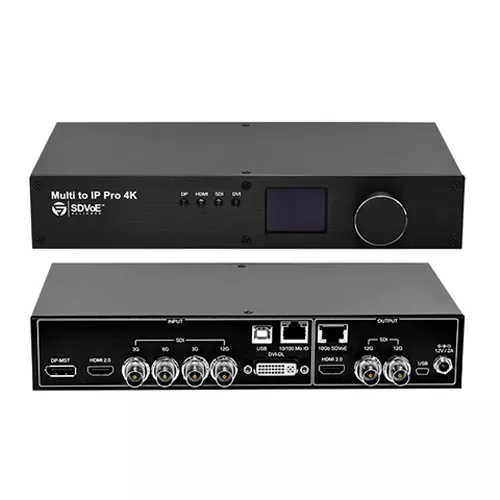

| Input Interface | Video HDMI 2.0×1 DP 1.2×1 DVI-DL×1 12G-SDI×1 6G-SDI×1 3G-SDI×2 Audio |
|
| Output Interface | Converted Video 12G-SDI×2 HDMI 2.0×1 RJ45×1 ( For SDVoE output ) Audio |
|
| Supported Video Input Format |
SDI 6G-SDI 3G-SDI HD-SDI HDMI 2.0 / DP1.2 |
DVI-DL 2560×1600p@60/50fps 2560×1600p@30/25/24fps 1920×1080p@60/50fps 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps 1280×1024p@60fps 1280×960p@60fps 1024×768p@60fps 800×600p@60fps 640×480p@60fps 720×480p@60fps 720×576p@50fps |
| Supported Video Output Format | SDI ( Converted, for SDI output, Please Provide Supported Resolutions as Below ) 12G-SDI 6G-SDI 3G-SDI HD-SDI |
HDMI ( Converted ) As Input Format RJ45 ( Converted ) |
| Audio Input Format | HDMI/DP : 8 Channels, 24bit, 48KHz SDI : 8 Channels, 24bit, 48KHz |
|
| Audio Output Format | HDMI: 8 Channels, 24bit, 48KHz SDI: 8 Channels, 24bit, 48KHz SDVoE: Up to 8 Channels, 24bit, 48KHz |
|
| Plug & Play | V | |
| DC In | 7.5V ~ 15V | |
