4 Channel 1080p30 SDI PCIe Capture Card With Hardware Compression – SC5A0N4 SDI

4 Channel 1080p30 SDI PCIe Capture Card With Hardware Compression - SC5A0N4 SDI

Description

Model	SC5A0N4 SDI
Max. FPS	1920×1080p@60/50fps in → 1920×1080p@30/25fps out
Recording Mode	Hardware Compression, Real-Time Mode
Interface	PCIe×4 ( Gen2 )

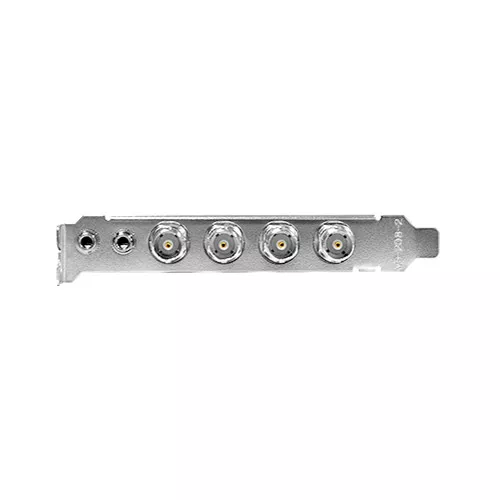

Video Input	4×SDI
Display Video Format	YV12, NV12, YUY2, RGB24, RGB32
Video RAW Data Resolution	HD-SDI 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps SD-SDI 720×480i@60fps 720×576i@50fps
Recording Video Format	H.264 ( Software Compression )
Recording Video Resolution	HD-SDI 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps SD-SDI 720×480i@60fps 720×576i@50fps
Audio Input	4×SDI Embedded Audio 2×3.5mm Audio
Audio Format	Stereo / 16-bit / 32000 ~ 48000Hz
Multiple Cards	∞
SDK	Support API: DirectShow, V4L2, FFmpeg, Gstreamer Support Language: C++, C#, .NET, Visual Basic, Qt, Delphi
	System Requirement
OS Support	Windows 7 / Windows 8 / Windows 8.1 / Windows 10 Linux 2.6.14 or Higher ( 32-bit and 64-bit )

Number of Input Channels	4 Channels
Color Precision	NV12, RGB24, RGB32, YUY2, YV12
Connection Interface	PCIe
Resolution	1080p30/25
Recording Mode	Hardware Compression, Real Time Mode
Video Input	SDI

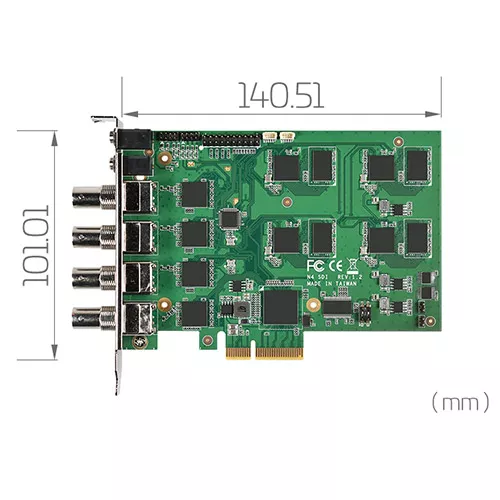

PCIe Form Factor	PCIe Standard
