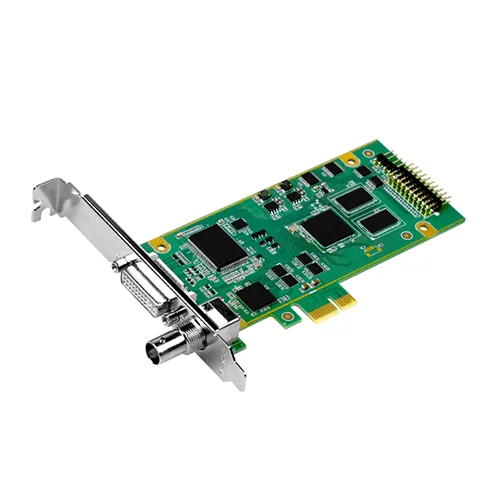

1 CHANNEL 1080P60 AIO PCIE CAPTURE CARD WITH HARDWARE COMPRESSION - SC5C0N1-L

If you need further assistance, have questions or would like an offer for this product, please don't hesitate to use the contact form below.

By clicking Send, you agree to our Terms and Data Use Policy.

SKU: SC5C0N1L Categories: , Tags: , ,

Description

Model SC5C0N1-L
Max. FPS 1920×1200p@60/50fps in → 1920×1200p@60/50fps out
1920×1080p@60/50fps in → 1920×1080p@60/50fps out
Recording Mode Hardware Compression, Real-Time Mode

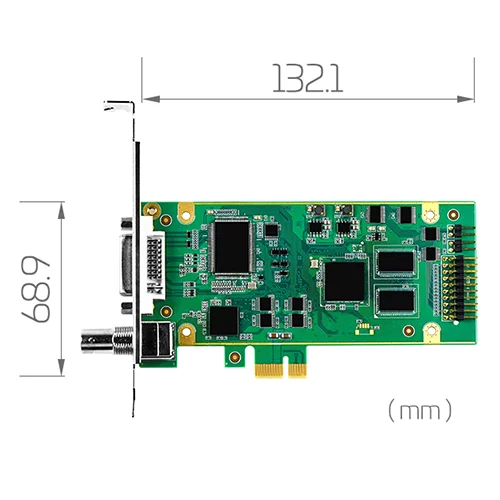

Dimension 132.1×68.9 ( mm )
Interface PCIe×1 ( Gen1 )
Video Input 1×SDI , 1×DVI-I
Optional Video Input 1×HDMI, 1×VGA, 1×CVBS, 1×S-Video , 1×YPbPr
Display Video Format YV12, NV12, YUY2, RGB24, RGB32
Video RAW Data Resolution 1920×1200p@60/50fps
1920×1200p@30/25/24fps
1920×1080p@60/50fps
1920×1080p@30/25/24fps
1920×1080i@60/50fps
1280×720p@60/50fps
1280×1024p@60fps
1280×960p@60fps
1024×768p@60fps
800×600p@60fps
640×480p@60fps
720×480p@60fps
720×576p@50fps
720×480i@60fps
720×576i@50fps
Recording Video Format H.264 ( Software Compression )
Recording Video Resolution 1920×1200p@60/50fps
1920×1200p@30/25/24fps
1920×1080p@60/50fps
1920×1080p@30/25/24fps
1920×1080i@60/50fps
1280×720p@60/50fps
1280×1024p@60fps
1280×960p@60fps
1024×768p@60fps
800×600p@60fps
640×480p@60fps
720×480p@60fps
720×576p@50fps
720×480i@60fps
720×576i@50fps
Audio Input 1×HDMI Embedded Audio, 1×SDI Embedded Audio, A Pair of RCA Audio Connector ( Audio L/R Through Component Cable )
Audio Format Stereo / 16-bit / 32000 ~ 48000Hz
WatchDog
Multiple Cards
SDK Support API : DirectShow, V4L2, FFmpeg, Gstreamer
Support Language : C++, C#, .NET, Visual Basic, Qt, Delphi
System Requirement
OS Support Windows 7 / Windows 8 / Windows 8.1 / Windows 10
Linux 2.6.14 or Higher ( 32-bit and 64-bit )

Additional information

Number of Input Channels

1 Channel

Color Precision

NV12, RGB24, RGB32, YUY2, YV12

Connection Interface

PCIe

Resolution

1080p60/50

Recording Mode

Hardware Compression, Real Time Mode

Video Input

All In One / Multi / HDV, SDI

PCIe Form Factor

PCIe Low Profile
