1 Channel 4K60 HDMI2.0 AV over IP Streaming Solution - SC6D0N1 HDMI2.0+

If you need further assistance, have questions or would like an offer for this product, please don't hesitate to use the contact form below.

By clicking Send, you agree to our Terms and Data Use Policy.

SKU: SC6D0N1_HDMI20 Categories: , Tags: , , , ,

Description

Model SC6D0N1 HDMI2.0+
Max. FPS 3840×2160p@60 / 50fps
Recording Mode Hardware Compression

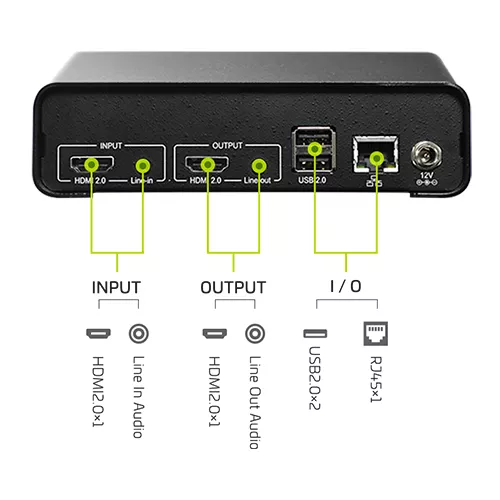

Input Interfaces Video
1×HDMI2.0

Audio
1×3.5mm Stereo Analog Audio

Output Interface Video
1×HDMI2.0

Audio
1×3.5mm Stereo Analog Audio

Video Feature H.265( HEVC ) / H.264 / AVC, Baseline / Main / High Profile
Configurable Bit Rate Up to 64Mbps

Supported Input / Output Resolutions:
3840×2160p@60/50fps
3840×2160p@30/25/24fps
1920×1080p@60/50fps
1920×1080p@30/25/24fps
1280×720p@60/50fps
1280×1024p@60fps
1280×960p@60fps
1024×768p@60fps
800×600p@60fps
640×480p@60fps
720×480p@60fps
720×576p@50fps

Audio Feature AAC-LC
Configurable bit rate range from 32Kbps to 384Kbps
Sample Rate : 48KHz, 16bit, Stereo
Network Feature 1×RJ45 for 10/100/1000Mbps Ethernet
DHCP client
Wifi: 802.11b/g/n
Support Streaming protocol NDI Support
RTSP over UDP/TCP/Multicast/HTTP
RTMP public ( web portal )
**TS over IP
**HLS
** optional by customer request
Misc. Features Web UI for system configuration
Firmware upgradable
LED indicator
Status with Power Recycle

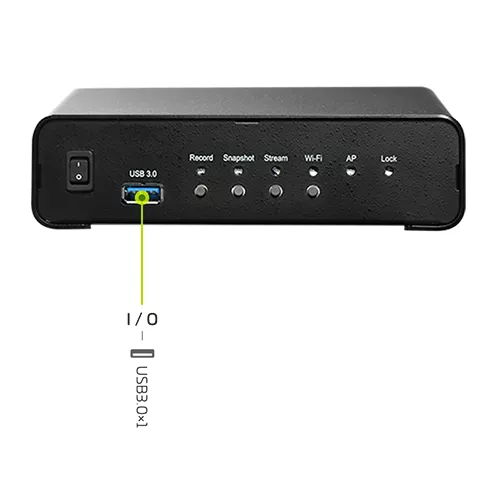

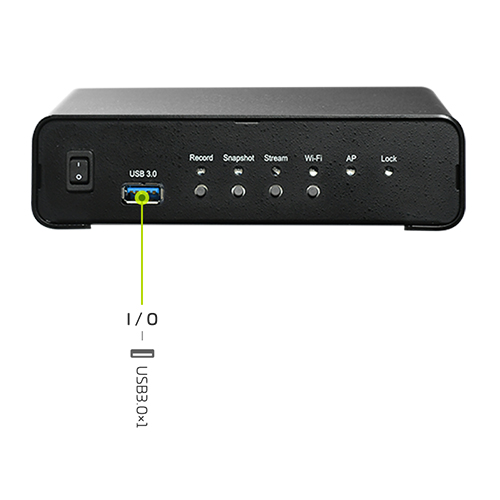

1×USB3.0 ( For external storage usage )
2×USB2.0
1×RS232 + 1×RS485/td>
Record Format MP4 / TS / MOV
System Requirement
Power Supply DC Input : 12V / 2A
Power consuming : 19.475W maximum Estimated ( Wifi not included )
Support POE input

Additional information

Resolution

4K 60p/50p

Number of Input Channels

1 Channel

Recording Mode

Hardware Compression

Streaming Protocol

NDI, RTSP / RTMP / TS / HLS

Video Input

HDMI

Color

Black

Video Output

HDMI, RJ45 – Copper
