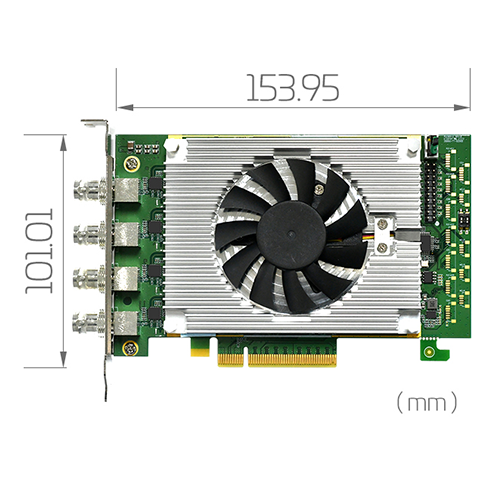

4 Channel 4K60 12G-SDI PCIe Capture Card – SC710N4 12G-SDI

4 Channel 4K60 12G-SDI PCIe Capture Card - SC710N4 12G-SDI

Description

Model	SC710N4 12G-SDI
Max. FPS	4096×2160p@60/50fps in → 4096×2160p@60/50fps out
Recording Mode	Software Compression, Real-Time Mode
Interface	PCIe×8 ( Gen2 )
Video Input	4×12G-SDI
Video Output	4×12G-SDI
Display Video Format	YV12, NV12, YUY2, RGB24, RGB32, V410, Y410, P010
Video RAW Data Resolution	12G-SDI 3840×2160@60/50fps 6G-SDI 4096×2160@30/25/24fps 3840×2160@30/25/24fps 3G-SDI 1920×1080p@60/50fps HD-SDI 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps SD-SDI 720×480i@60fps 720×576i@50fps
Recording Video Format	H.264 ( Software Compression )
Recording Video Resolution	12G-SDI 3840×2160@60/50fps 6G-SDI 4096×2160@30/25/24fps 3840×2160@30/25/24fps 3G-SDI 1920×1080p@60/50fps HD-SDI 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps SD-SDI 720×480i@60fps 720×576i@50fps
Audio Input	4×SDI Embedded Audio
Audio Output	4×SDI Embedded Audio
Audio Format	Stereo / 16-bit / 32000 ~ 48000Hz
Multiple Cards	∞
SDK	Support API: DirectShow, V4L2, FFmpeg, Gstreamer Support Language: C++, C#, .NET, Visual Basic, Qt, Delphi
	System Requirement
OS Support	Windows 7 / Windows 8 / Windows 8.1 / Windows 10 Linux 2.6.14 or Higher ( 32-bit and 64-bit )

Resolution	8K 60p/50p, 4K 60p/50p
Number of Input Channels	4 Channels
Color Precision	NV12, P010, RGB24, RGB32, V410, Y410, YUY2, YV12
Connection Interface	PCIe
Recording Mode	Real Time Mode, Software Compression
Video Input	SDI
Video Output	SDI
PCIe Form Factor	PCIe Standard
